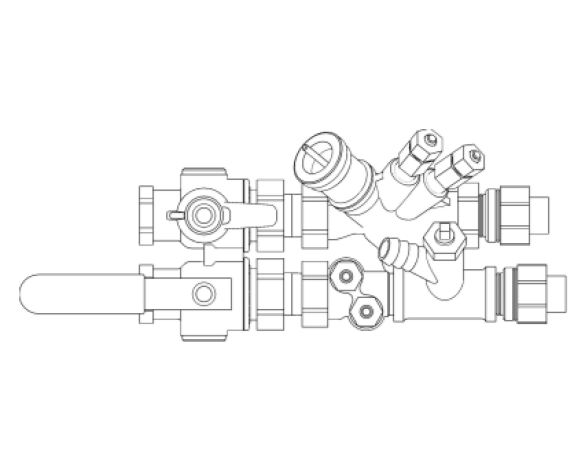

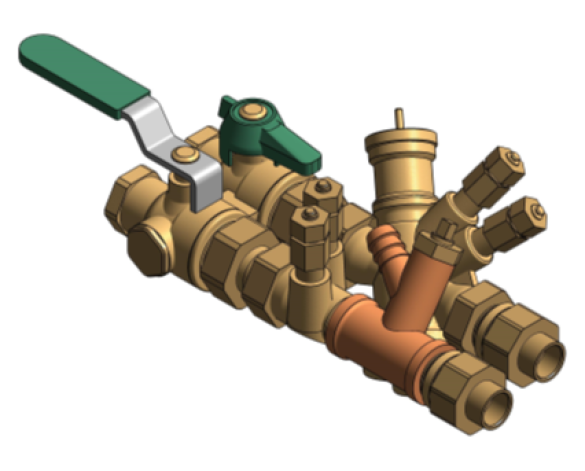

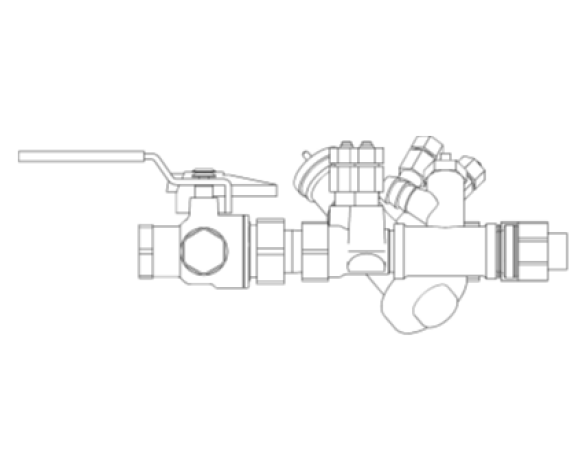

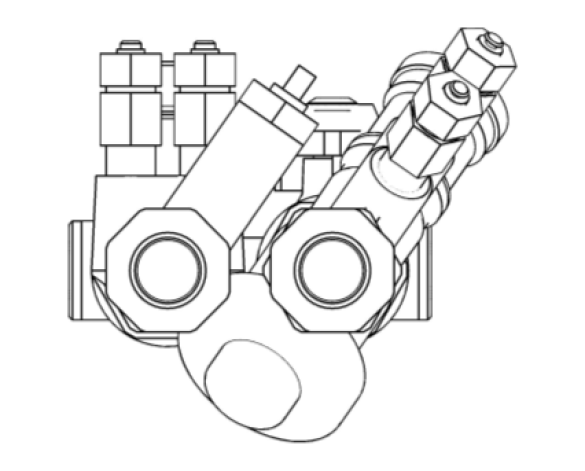

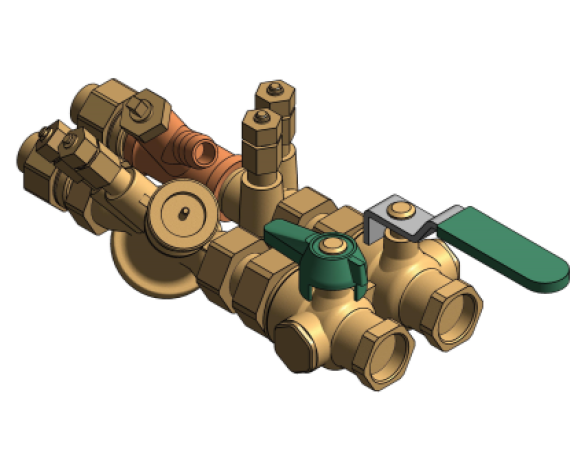

Fig. 507 Hook-Up Prime & PICV

The Features & Benefits are:

This product is designed with a 40mm centre to fit directly onto the terminal unit which reduces the installation time and cost.

It has an ultra compact design that can be mounted over an extended drip tray on the fan coil unit, thus eliminating requirement for lagging.

It has been fully assembled and factory tested ready for use.

It also has an Integral flushing by-pass included with every unit.

It has a flow measurement device fitted as standard on all of the units.

The on/off or modulating actuators are available and should be ordered separately if needed.

Please load this component via the type catalogue to display alternate sizes.

This download will include:

1 Pipe Accessory Family - Fig. 507 Hook-Up Prime & PICV

The Crane BIM Components Userguide you may require.

Please load this component via the type catalogue to display alternate sizes.
