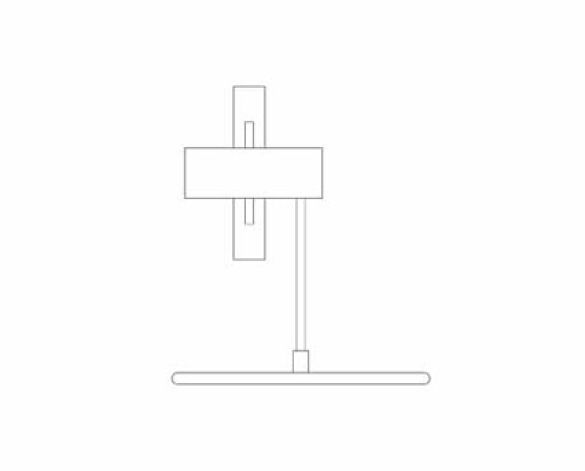

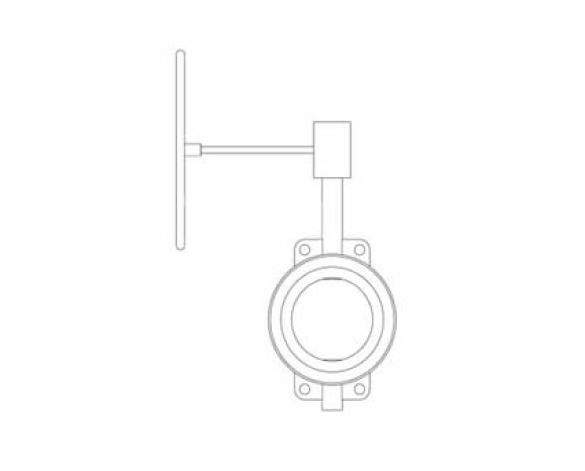

Fig. 950G - Semi-Lugged Wafer Pattern Butterfly Valve

This product, the 950G - has a ductile Iron Body and an Aluminium Bronze Disc. It has a liner bonded to steel backing ring and great strength with low friction bearings that form the upper and lower shafts which restrain shaft deflection and ensure effective stem sealing.

Please load this component via the type catalogue to display alternate sizes.

This download will include all size variations of the 950G Butterfly Valve by Hattersley you may require.

Please load this component via the type catalogue to display alternate sizes.
