Gemini® is an award-winning twin interlocking plain tile that is appropriate for pitches down to twenty-two degrees and is obtainable in eleven colours.This innovative product assists both in reducing the build price and the environmental impact of the project by lowering the number of quarried aggregate used and haulage movement per laid m².

Advantages (in comparison to plain tiles)

• 16.3 tiles per m² (60 for plain tiles)• Lays to 22.5° (35° for plain tiles)• 20% labour reductions on installation• 30% reduction in weight• 42% savings on battens• 6% saving on trusses• 40% CO2 saving in production

Other Advantages

• Full vary of Dry Fix fittings obtainable• Kitemarked to BS EN 490• sixty-year warranty

This download contains a Revit Project containing roof system for the Gemini Tile Range from Forticrete.

This component is created in Revit 2015 and is in line with 2015 industry standards.

The download includes the Gemini Roof Tile System in the following colours;

- Brown- Jacobean- Mixed Russet- Red- Slate Grey- Sunrise Blend

Read more

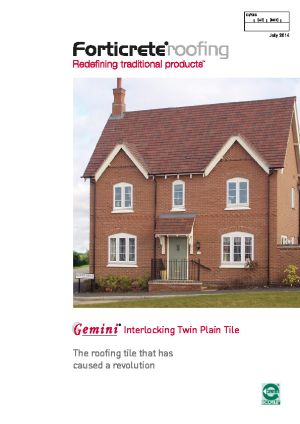

Accompanying literature
