The TDS46M is a stainless steel, thermodynamic steam trap that has been specifically designed for low capacity applications up to 46 bar g (where pipe connections permit). As standard the unit is available with either screwed, socket weld or flanged connections.

This download includes all available size and material variations for the Spirax Sarco TDS46M Thermodynamic Steam Trap.

This component is created in Revit 2016 and is in line with 2015 industry standards.

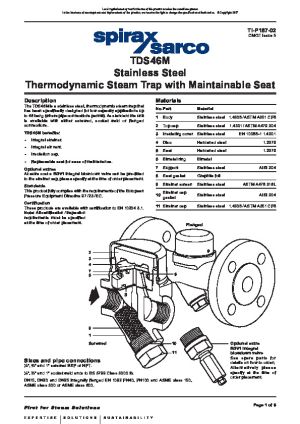

Accompanying literature
